MODEL Q-40   Compact Inside Groove Diameter Gage



The Q-40 checks the diameter of internal grooves: O-ring grooves and other seal grooves,
retaining ring grooves, thread and grind reliefs, internal slots, pocket depths, etc.

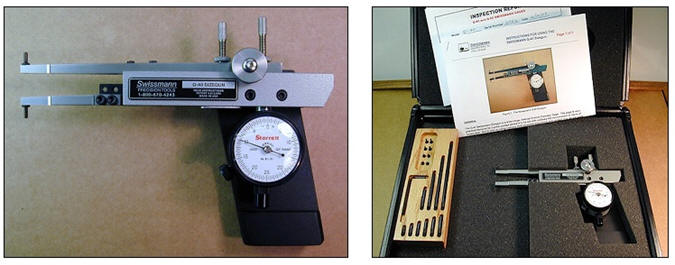

Model Q40 Complete Set

- Diameter range:    .750 dia to over 10.00 dia.
- Reach into bore:    4.3 into a 1.250 diameter or larger bore.
- Reach into bore:   1.700 into smaller bores (.700 dia to 1.250).
_______________________________________________________________________

COMPACT   Overall length is only 7.3- for short machines and tight places.

RETRACTS A FULL  .700  Clears bottlenecks and checks deeply cut grooves.

EASY SETUP    Set with ordinary outside micrometers or items of known size.
Two-point contact.  Rings or special setting devices not needed.

CHECKS NARROW GROOVES
   Checks grooves down to .050 wide.

PRECISION ACCESSORIES
    For details, click  See Accessories.
Threads are same 4-48 as used on standard dial indicator accessories.

PREMIUM JEWELED INDICATOR
    Graduations are .0005. Made in USA.
Gage can also be used with digital indicators and probes.


DURABILITY
   Built for reliable long-term use in the shop or field.
Accuracy that lasts.

Q-40 COMPLETE SET
Comes as shown above, with full set of Accessories, illustrated Instructions
and Test Report, in a rugged padded Case.
