PRACTICAL  The MODEL 9 is designed to check a very high percentage of the ID grooves that
a shop will see over the years. Still, it is relatively compact in size and light in weight, and can be
used on small parts or very large parts.  And with the MODEL 9, the shop is ready for most of the
grooves located far back into the part.

SLIM PROFILE  Goes into bores as small as 1.5 diameter.

DEEP REACH  Reaches  9.8 inches into a bore as small as 2.0 diameter.  Reaches 6 inches into
a bore as small as 1.5 diameter.

WIDE ID RANGE  Checks ID groove diameters to over 11 inches. Easy to extend to virtually any
inside diameter size.

STARRETT JEWELED INDICATOR    Made in USA.  .0005 graduations.  Can also be used with
digital indicators and transducers.

FULL .800 RETRACTION   Clears bottlenecks and checks grooves cut deep into the ID wall.
Groove diameter can exceed bore size by .800.

SIMPLE   Set with ordinary outside micrometers or items of known size. Setups are fast and
uncomplicated. No special set-rings. No special devices.

DURABLE   Designed for long life in the shop or field . Accuracy that lasts.

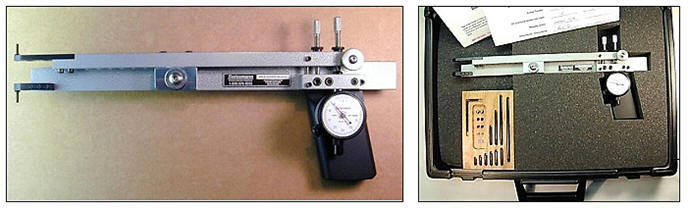

MODEL 9   COMPLETE SET
Comes as shown above, with a full set of accessories needed to check most ID grooves, and
Illustrated Instructions, in a high-impact storage case.
