Swissmann












             INSPECTION GAGES

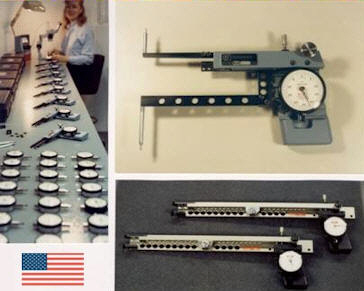

Swissmann has developed and patented some of the world's most preferred Precision Internal Groove Diameter Gages to check grooves for O-rings and other seals,  snap rings, thread reliefs, oil grooves and most other types of ID recess cuts.

These gages have been proven in use by companies of every size, from job shops to the great corporations.  Swissmann is an American company and all products are made in the USA.

Tips and Extensions are available in stock for all gages.  Please see prices at  Accessories.
Unfortunately however, no gages will be available until the Clovid-19 virus problems are behind us.





      MODEL
 Q-40


ID GROOVE DIAMETER GAGE

4.3" reach into bore




ID GROOVE DIAMETER GAGE

6.3" reach into bore






ID GROOVE DIAMETER GAGE

9.8" reach into bore




ID GROOVE DIAMETER GAGE

13.8" reach into bore
